CINDY MUSIC
Guitar Neck Wood Shims Set0.25° 0.5° 1° Guitar Bass Neck Angle Adjustment Repair
Guitar Neck Wood Shims Set0.25° 0.5° 1° Guitar Bass Neck Angle Adjustment Repair
Regular price
$18.88 AUD
Regular price
Sale price
$18.88 AUD
Unit price
/
per
Shipping calculated at checkout.
Couldn't load pickup availability

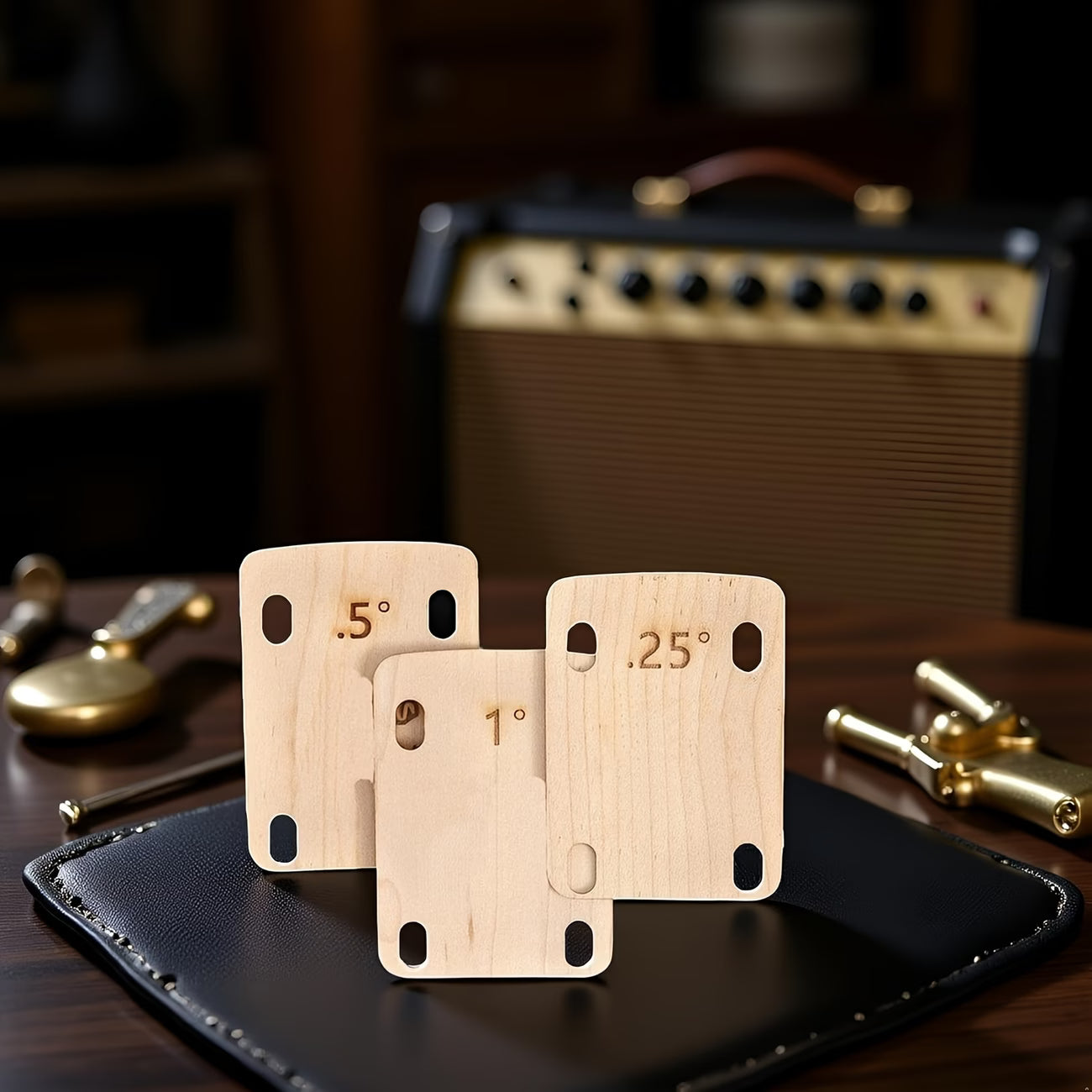

Guitar Neck Wood Shims Set 0.25° 0.5° 1° Guitar Bass Neck Angle Adjustment Repair
Guitar Neck Wood Shims – Bolt-On Neck Angle Adjustment
Product Features：

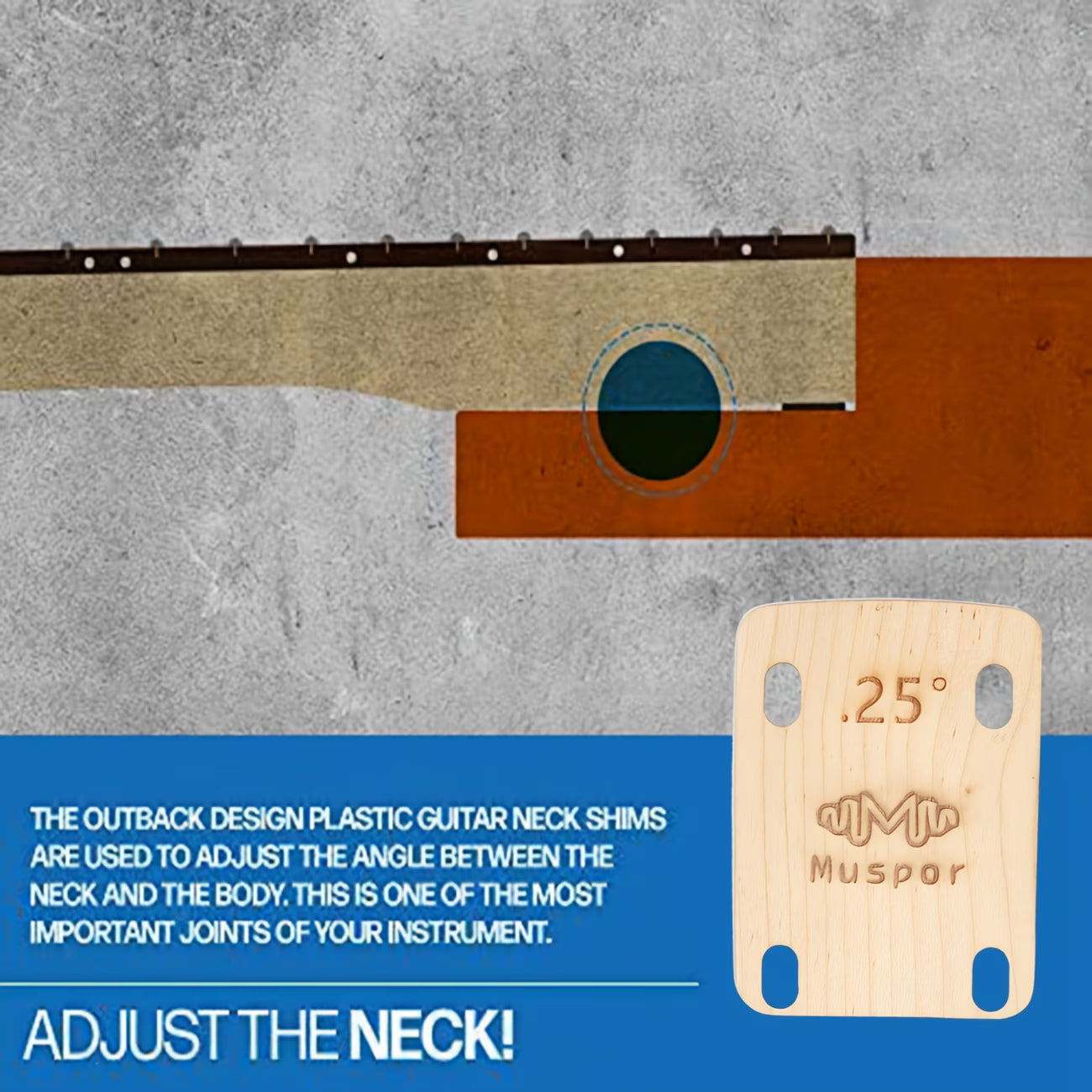

Neck Angle Adjustment: Designed to adjust the neck angle on bolt-on electric guitars and bass guitars.

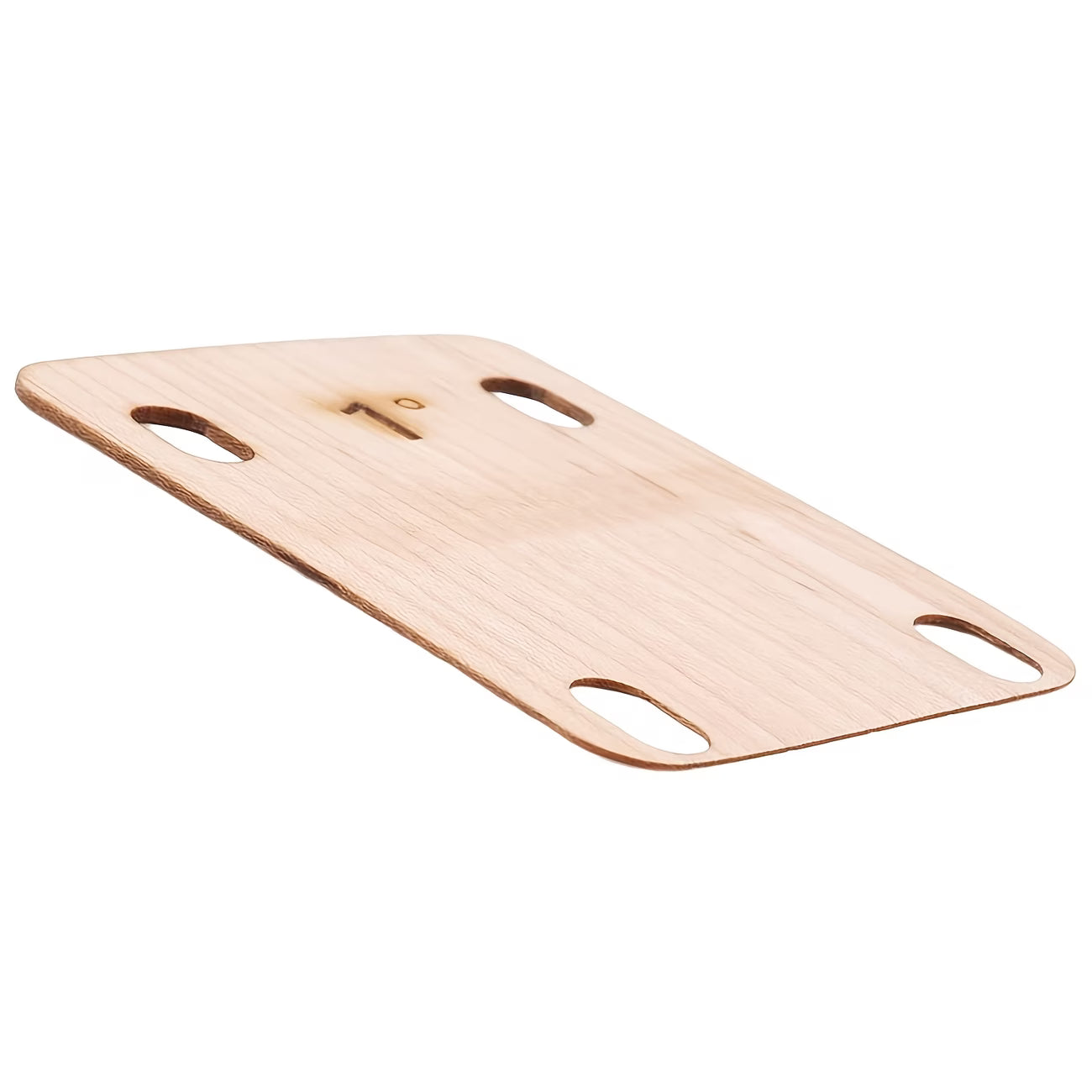

Wood Construction: Made from wood to provide a stable and guitar-friendly neck shim.

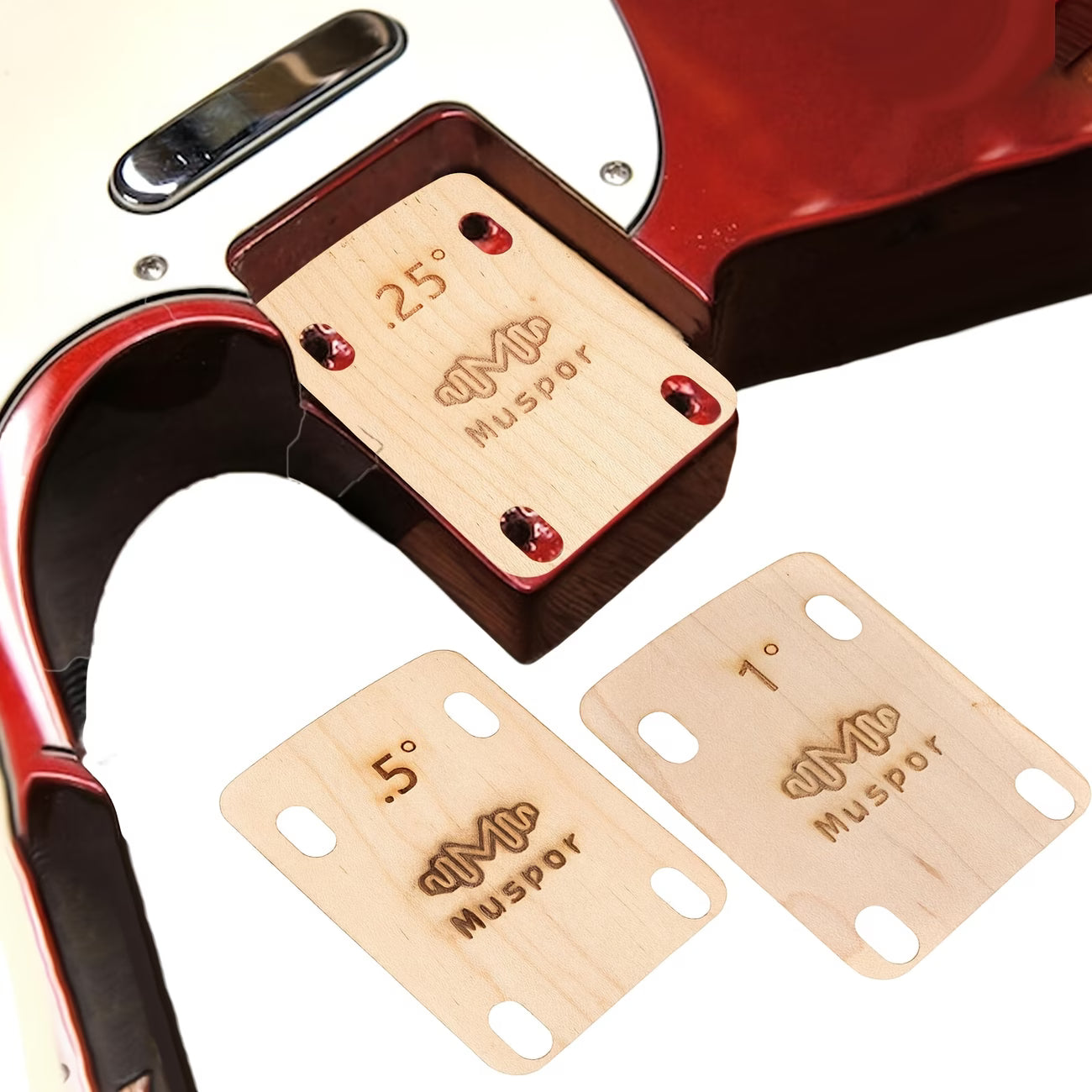

Full Neck Pocket Coverage: The tapered design covers the full base of the neck pocket, providing a more consistent fit than commonly used homemade “pick-shaped” shims, which can leave unnecessary gaps.
Precise Adjustment: Different taper angles allow you to make fine adjustments to the neck angle. The 0.25° shims can also be stacked for more precise adjustment when required.
Useful for Guitar Repair: A practical item to keep in your guitar repair workstation for quick and convenient neck angle adjustments.
Two Set Options Available

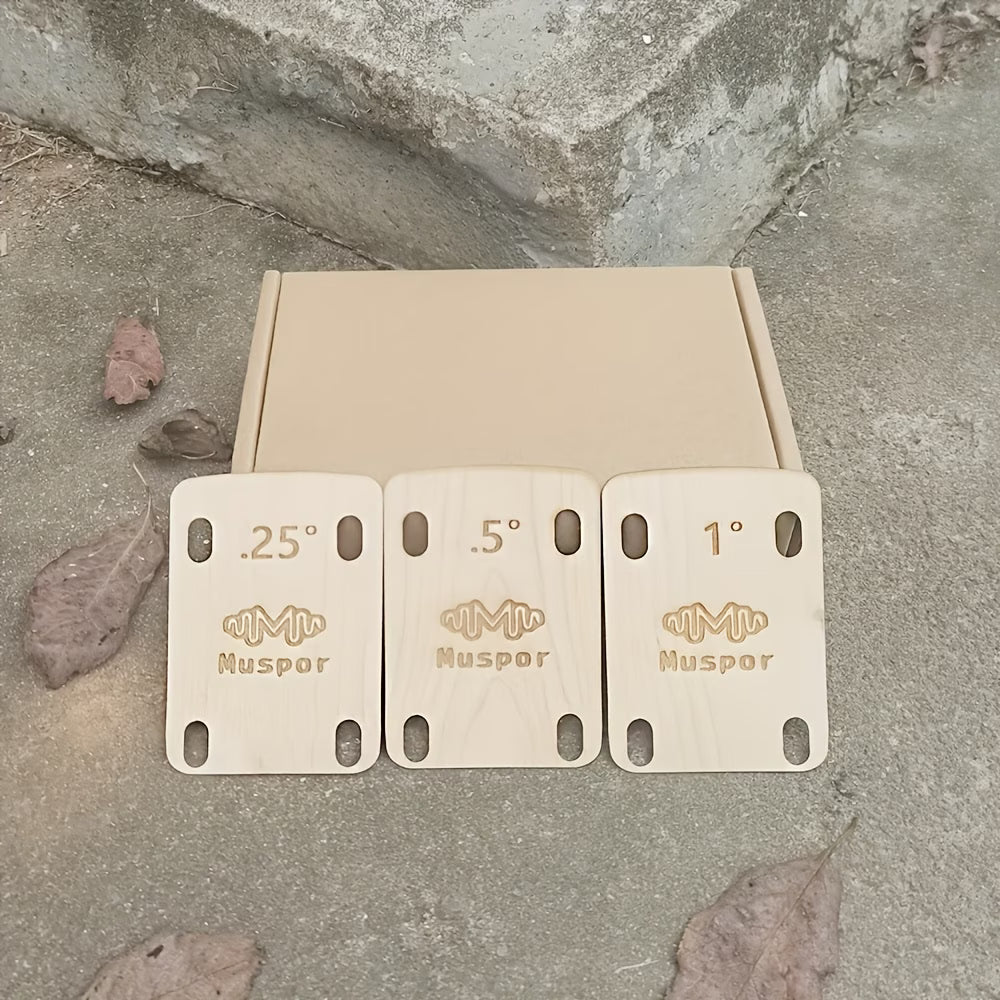

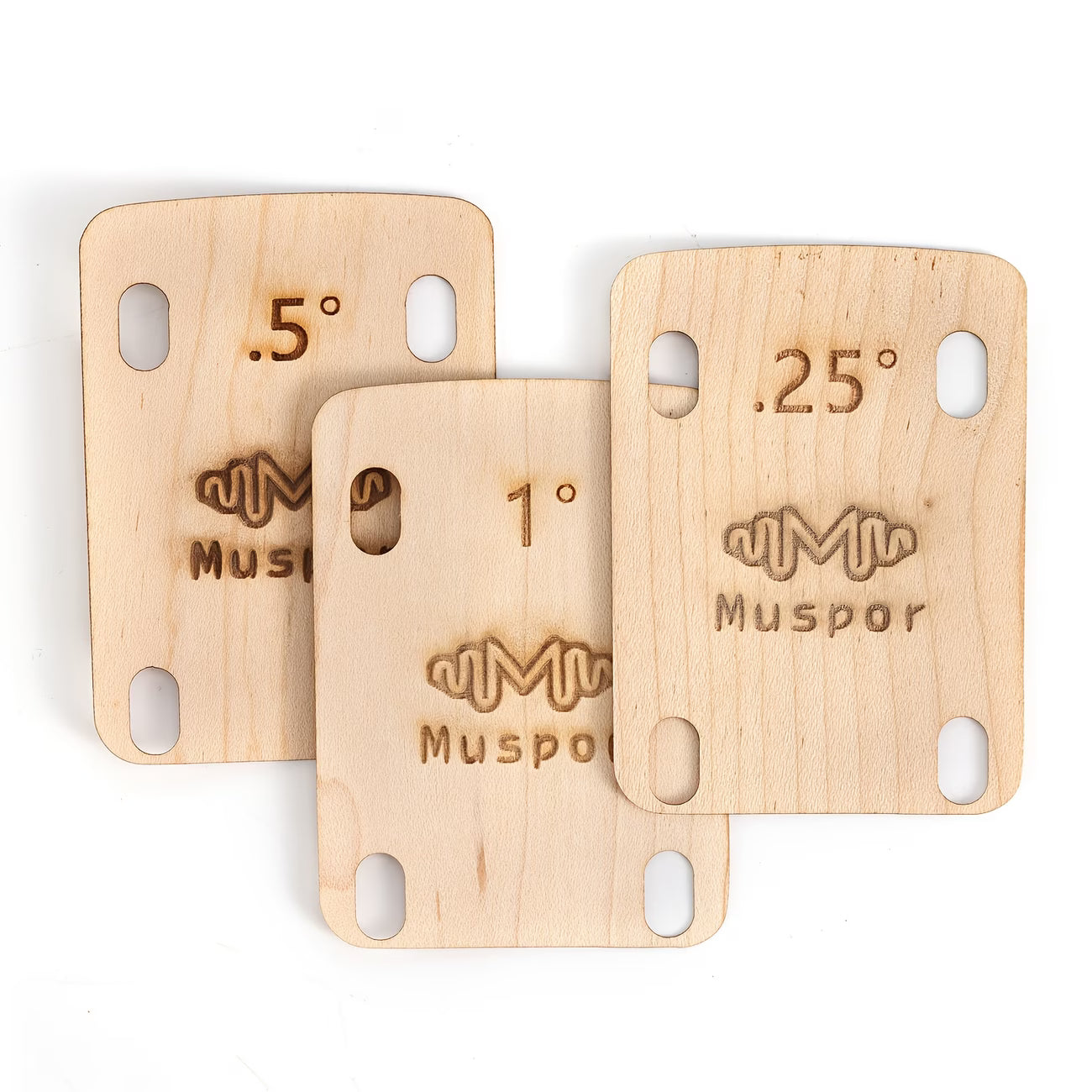

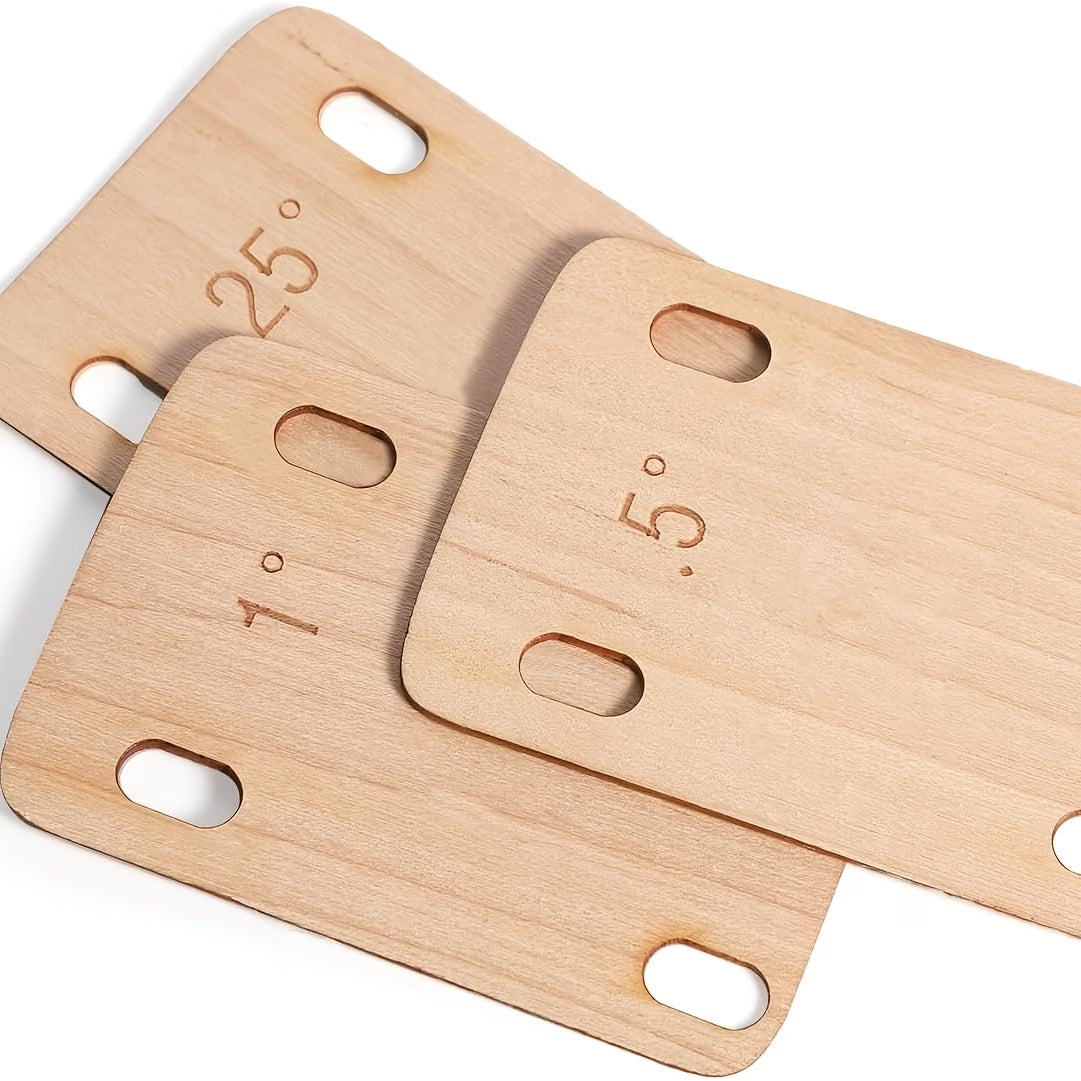

Option 1 – Tapered Neck Shims
0.25° × 1 pc
0.5° × 1 pc
1° × 1 pc
Option 2 – Blank Shims for Custom Sanding
2.2 mm thickness × 3 pcs
Suitable for users who prefer to sand and shape the shims to their own requirements.
Taper Angle Applications
Each shim has a different taper and can be used to adjust the neck angle of bolt-on guitars and bass guitars.
0.25° Shim: The most versatile option. Multiple shims can be combined to achieve a more precise neck angle adjustment.
0.5° Shim: A commonly used angle, suitable for Fender-style guitars and many other solid-body electric guitars.
1° Shim: Suitable for guitars fitted with Tune-o-matic or Floyd Rose style bridges where a greater neck angle adjustment may be required.

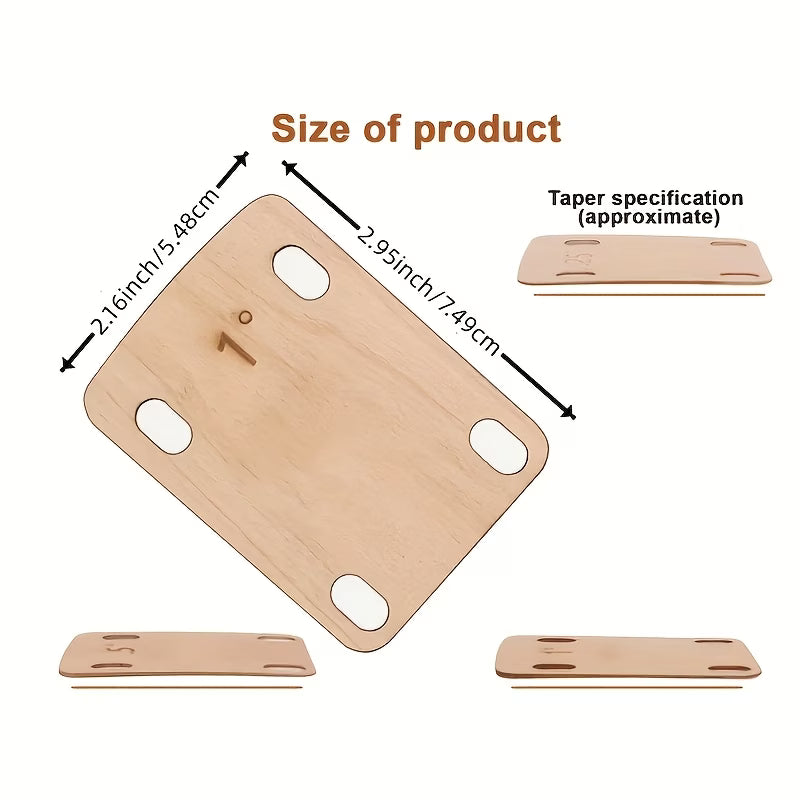

Dimensions
Shim Size:
2-3/16" × 3"
Approx. 55.56 mm × 76.12 mm
Approximate Taper Specifications
0.25° Taper:
Thickness from approx. 0.030" to 0.019"
(0.76 mm to 0.048 mm)
0.5° Taper:
Thickness from approx. 0.028" to 0.008"
(0.71 mm to 0.020 mm)
1° Taper:
Thickness from approx. 0.060" to 0.010"
(1.52 mm to 0.025 mm)
Please note: Taper measurements are approximate and may vary slightly due to the manufacturing process.

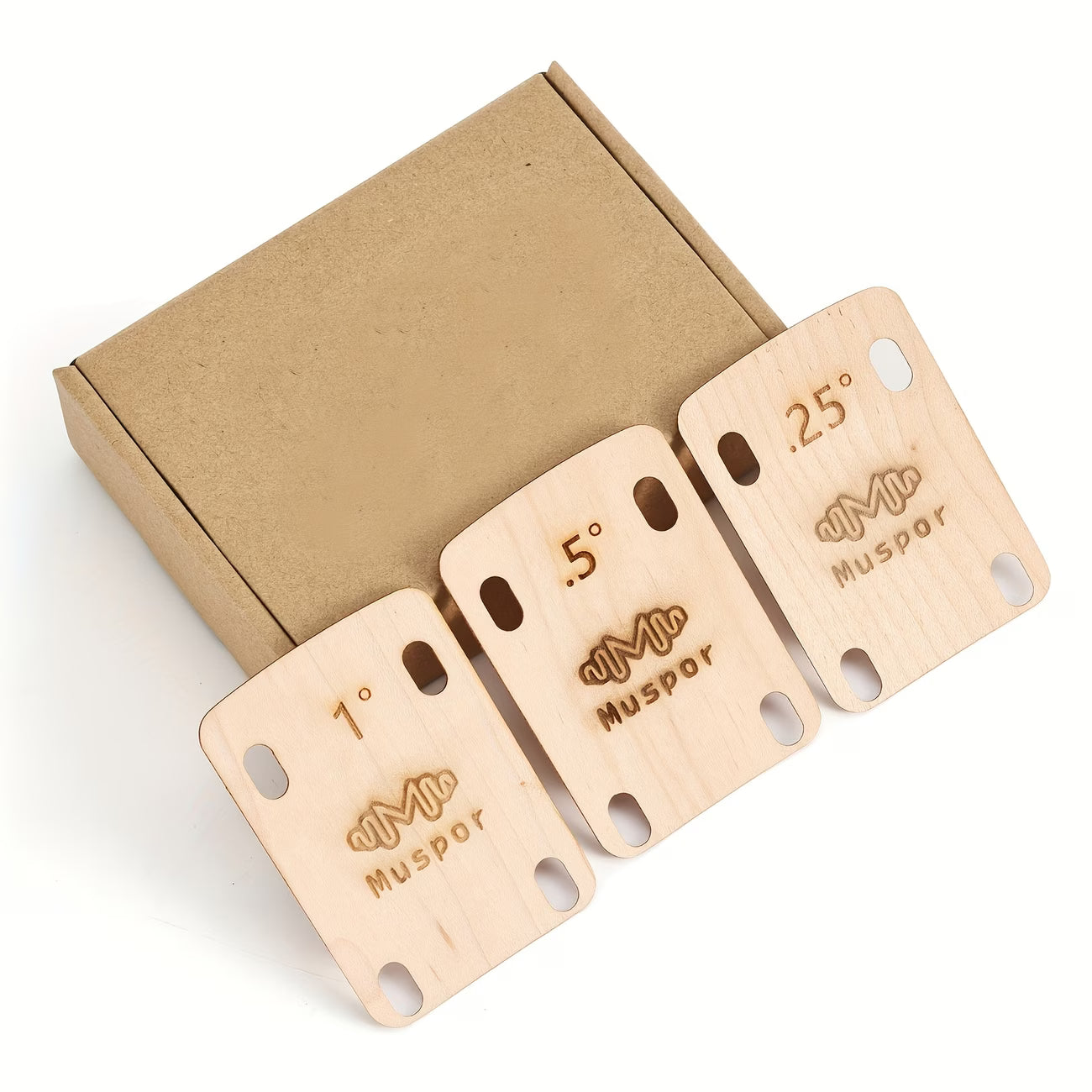

Package Includes：
Option 1:
3 × Wood Guitar Neck Shims
(0.25° × 1, 0.5° × 1, 1° × 1)
Option 2:
3 × Wood Guitar Neck Shims
（2.2 mm thickness）
Compatibility
Suitable for bolt-on neck guitars and bass guitars, including Fender-style and other solid-body electric instruments.
Please check the dimensions and required neck angle before purchase to ensure the shim is suitable for your instrument.
